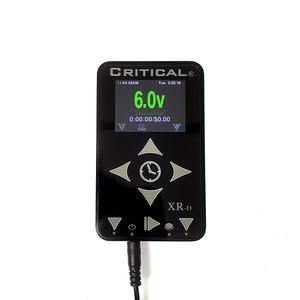

Critical XR-D

Sold out
$400.00
SKU
  • New-Full color TFT display with user selectable color themes and large easy to read fonts.
  • New-Billet aluminum CNC machined housing
  • New-Carefully tuned Capacitive touch user interface
  • New for the XR-d is a built in oscilloscope for a visual approach to coil machine tuning
  • New- mount design for more mounting flexibility.
  • New- Jump start feature and maintained pedal modes now independently assignable to preset/output buttons
  • New- Genuine high quality Amphenol 1/4" jacks for better power delivery and long life.
  • Dual Independent Outputs
  • 6 amp peak inrush current, 3 amp true RMS continuous current
  • Session meter based on user set hourly rate: session mode, run time mode, or hybrid mode (new “Hybrid” billing mode automates user input)
  • Pedal override button: No need for a foot pedal
  • Precision regulated set point voltage 0-17vdc
  • Built in short circuit protection
  • .1 volt adjustment resolution
  • Time of day
  • Voltage presets with 2, 4, or 6 machine memory modes
  • Non-volatile memory
  • Universal input 90-240vac 50/60hz
  • Accepts standard 1/4" clip cord and foot pedal connections
  • Volts, Amps, Speed (hz), Duty Cycle (%), and STL
  • Easily bagged with typical machine or bottle baggies
  • Additional mounting options available in store
  • 2 year full manufacturer warranty
  • Included: XR-D power supply, Magnet mount, US power cord and switching power adapter
  • Made in the USA
  • Warranty Through Manufacturer
